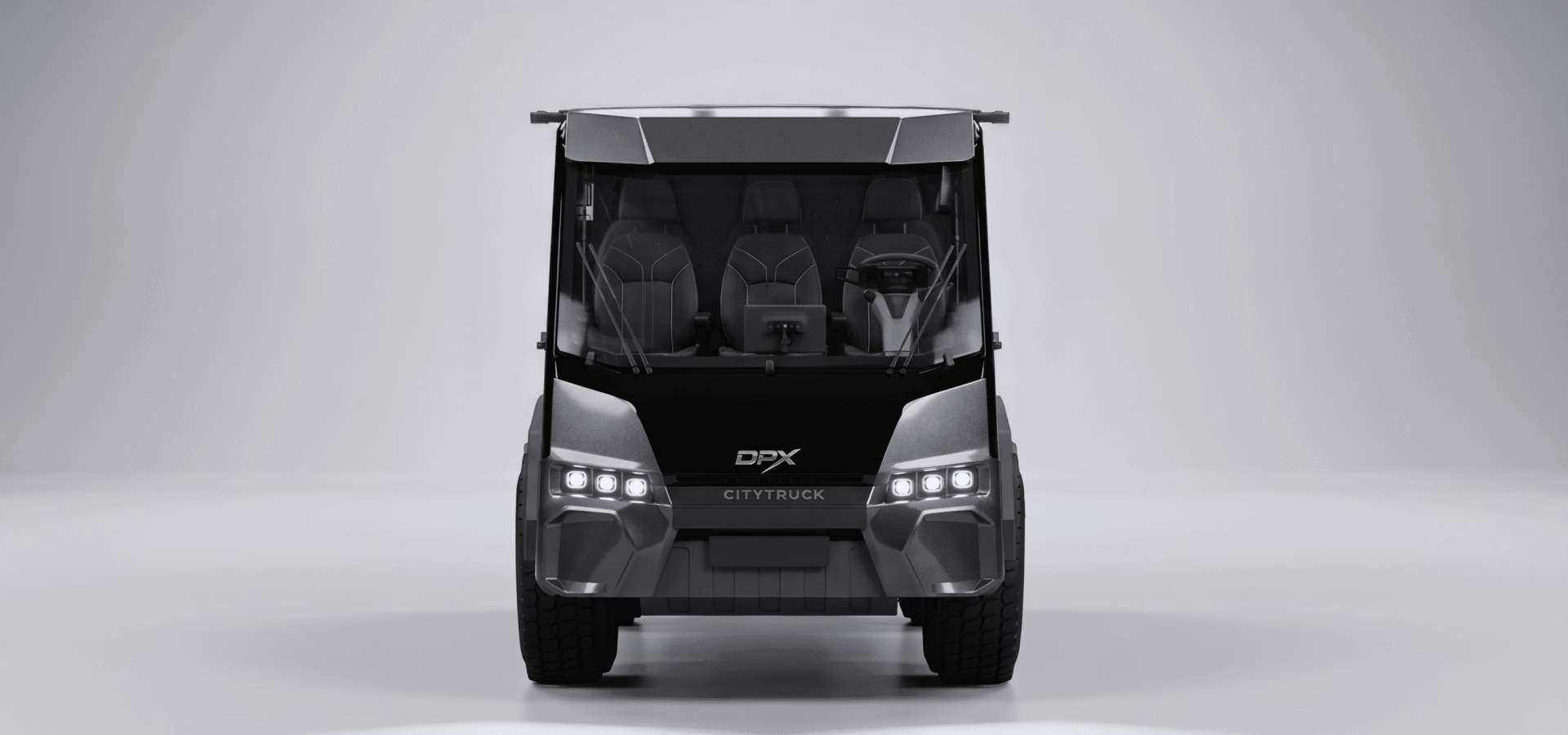

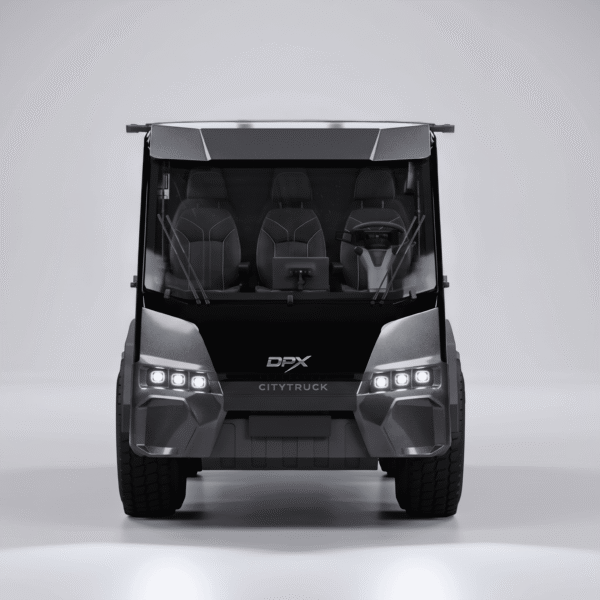

CityTruck
See Specifications sheetZero-emission performance for municipal & public works.
DPX was created to make professional electric mobility more flexible and accessible. Building on fifty years of engineering experience, our modular platform combines robust mechanical design with advanced electric technology, providing a reliable, adaptable foundation for high-performance.
Built for the demands of modern urban operations
Applications

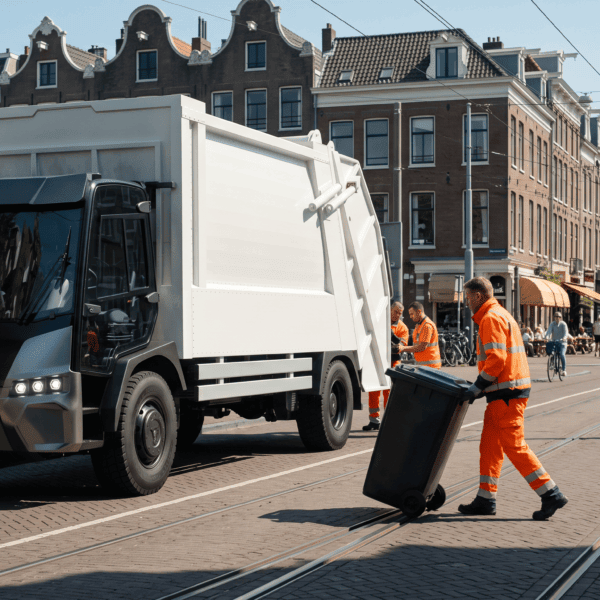

Street Cleaning, Waste Collection, Parks & Gardens, Utility Services and Winter Maintenance.
Technical Highlights
Four-Wheel Steering, Rear-Wheel Drive with optional Four-Wheel Drive and Hydraulic Independent Suspension.
Key Specifications
45 km/h Maximum Speed, 2WD / 4WD Configuration and 141.3 kWh Battery Capacity.
Built to move through the city with maximum manoeuvrability and reliable performance
The CityTruck combines a heavy-duty electric platform with exceptional manoeuvrability and flexible drive options, making it ready for demanding municipal operations, from street cleaning to winter maintenance.
- Zero-emission operation for cleaner cities
- Heavy-duty engineering for everyday use
- Flexible design for changing municipal needs
Built in the Netherlands, engineered to perform anywhere
Every DPX platform is engineered and manufactured in the Netherlands, where innovation, craftsmanship and quality come together. From engineering to final assembly, every step is carefully managed to ensure high standards of reliability and performance.
- Dutch Engineering
- Quality Manufacturing
- Built for Reliability
Technical specifications
| Ref. | Description | Unit | CityTruck |
|---|---|---|---|
| A | Total load capacity | t | 10 / 15* |
| B | Maximum gross vehicle weight | t | 16 / 21* |
| C | Axle load capacity | t/axle | 7.5 / 10* |
| D | Motor power, peak / continuous | kW | 330 / 188 |
| E | Twin motor power, peak / continuous | kW | - |
| F | Peak motor torque, peak / continuous | Nm | 550 / 265 |
| G | Battery capacity | kWh | 141.3 |
| H | Battery capacity wheel base >5.6m | kWh | 211.95* |
| I | Battery voltage | V | 614.4 |
| J | DC fast-charging current | A | ≤200 |
| K | AC on-board charger | kW | 20 |
| L | Maximum speed | km/h | 45 |
| M | Drive configuration | - | 2WD / 4WD* |
| N | Steering modes | - | 4 |
| O | Wheelbase | mm | 4325 |
| P | Standard chassis length | mm | 5100 |
| Q | Chassis height – driving | mm | 1142 |
| R | Tyre size | - | 385/65 R22.5 |
| S | Tyre type | - | X WORKS HL Z2 |
| T | Ground clearance – low | mm | 284 |
| U | Ground clearance – driving | mm | 324 |
| V | Ground clearance – high | mm | 364 |
| W | Base price (excl. VAT) | € | 99.000 |
*optional
